120W LED Explosion Proof Light – 19,577 Lumens – Class I Div 2 Hazardous Location – DLC Premium – IP66 Industrial Fixture

120W LED Explosion Proof Light – Class I Division 2 Hazardous Location Fixture

The 120W LED Explosion Proof Light is engineered for maximum safety and performance in hazardous and classified environments. Designed for Class I Division 2 locations, this fixture prevents ignition in areas exposed to flammable gases, vapors, and combustible dust.

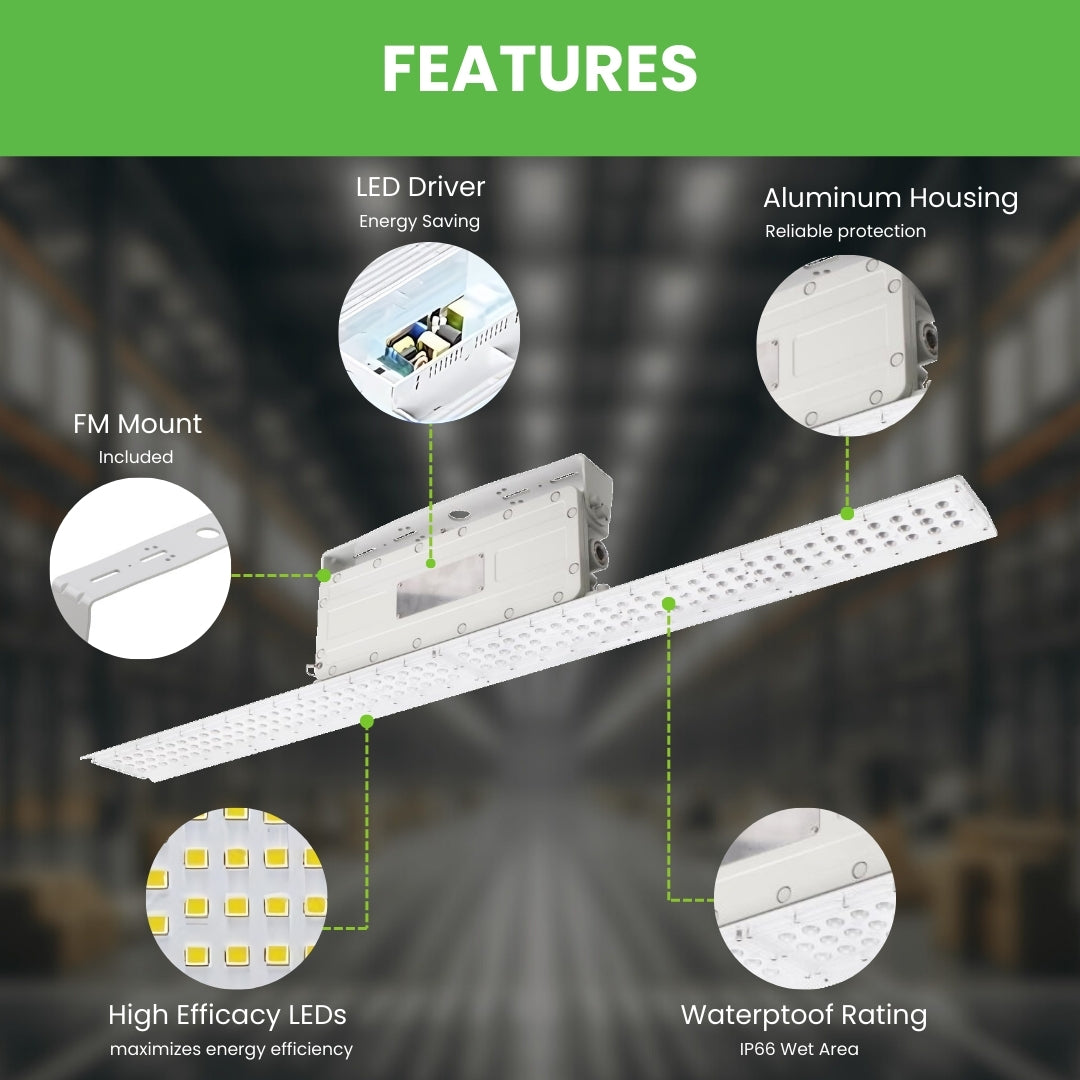

With up to 19,577 lumens output and 162 lm/W high efficacy, this LED fixture provides powerful, energy-efficient lighting while replacing traditional HID systems. Its rugged aluminum housing, IP66 waterproof rating, and advanced thermal management ensure reliable operation in extreme industrial conditions.

Key Performance Specifications

• Power: 120W
• Lumen Output: Up to 19,577 lumens
• Luminous Efficacy: Up to 162 lm/W
• Color Temperatures: 3000K / 4000K / 5000K / 5700K / 6500K
• Beam Angle: 80° wide distribution
• CRI: >80
• Color Consistency: <6 SDCM
• Flicker: <5%

Electrical Specifications

• Input Voltage: 120-277VAC
• Frequency: 50/60Hz
• Power Factor: ≥0.9
• Total Harmonic Distortion: ≤20%
• Dimming: 0-10V dimmable
• Surge Protection: 10kV (L/N-PE), 6kV (L-N)

Hazardous Location Certifications

• Class I Division 2, Groups A, B, C, D
• Temperature Class: T4A
• UL 844 Certified
• UL 1598 / UL 1598A Compliant
• UL 8750 Certified
• CSA C22.2 Approved
• DLC 5.1 Premium Listed

Durability & Construction

• Housing Material: Heavy-duty aluminum
• Lens Type: PC lens for uniform light distribution
• Waterproof Rating: IP66 (wet location rated)
• Operating Temperature: -40°C to 65°C
• Humidity Range: 10% to 90%
• Corrosion and dust resistant

LED & Optical Details

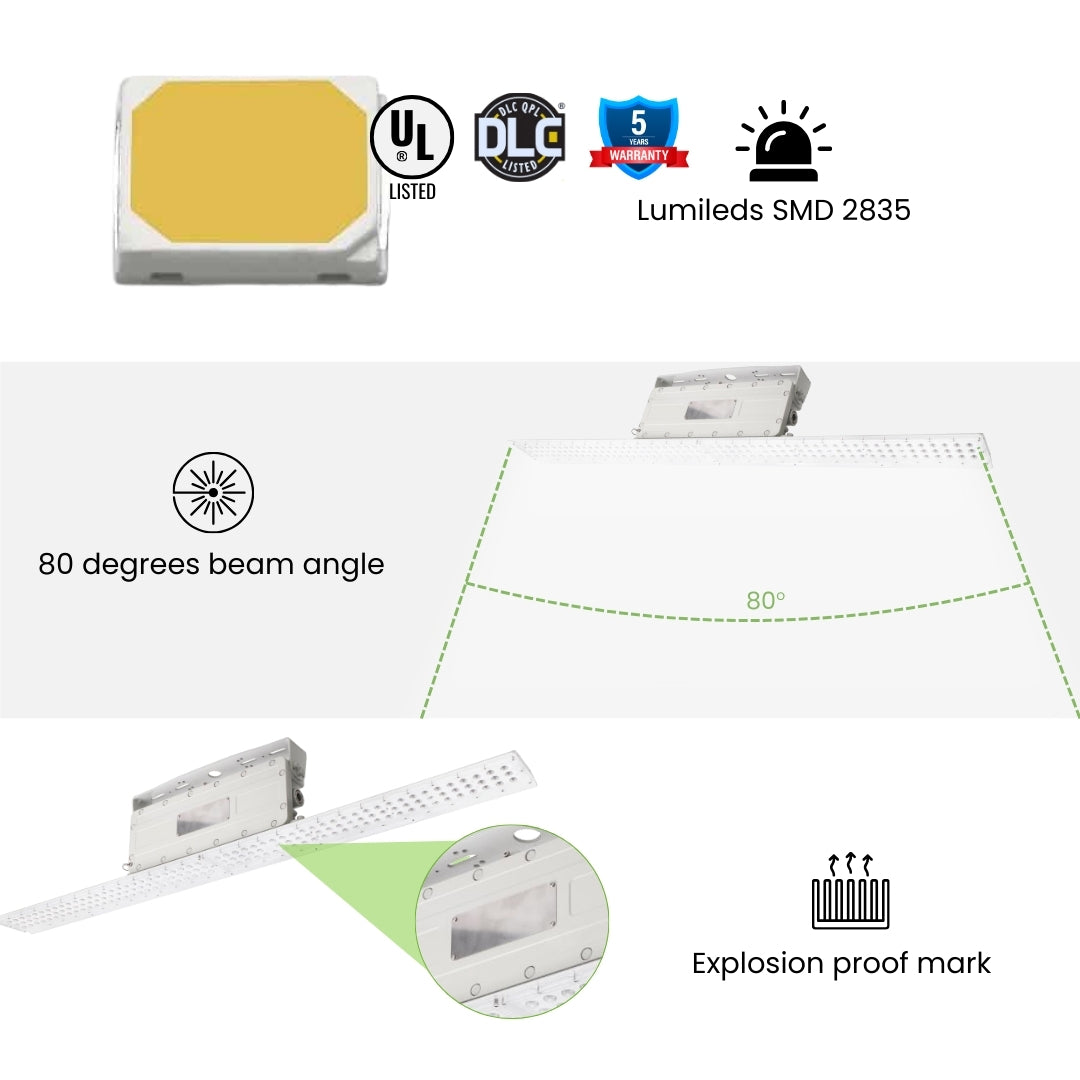

• LED Type: Lumileds SMD 2835
• Total LEDs: 320 pcs
• UGR: <28 (reduced glare)
• No UV or IR radiation
• Instant start with no flickering or humming

Energy Savings & Lifespan

• Up to 70% energy savings compared to HID fixtures
• Long lifespan: 50,000+ hours
• Maintenance-free operation
• Eco-friendly (no mercury)

Applications

• Oil refineries and gas stations
• Petrochemical and chemical processing plants
• Industrial manufacturing facilities
• Warehouses and workshops
• Marine and offshore environments
• Railways, ports, and power plants
• Public safety and fire protection zones

Why Choose This Explosion Proof Light?

• Certified for hazardous locations with maximum safety
• High lumen output with superior energy efficiency
• Reliable operation in extreme temperatures
• Advanced protection against water, dust, and corrosion
• Backed by 5-year warranty

Frequently Asked Questions (FAQs)

What is a Class I Division 2 explosion proof light?

It is a lighting fixture designed for environments where flammable gases or vapors are present only under abnormal conditions. The fixture is sealed to prevent sparks or heat from igniting hazardous substances.

How many lumens does this light produce?

This 120W LED explosion proof light produces up to 19,577 lumens, providing bright and uniform illumination for industrial applications.

What voltage does this light support?

The fixture operates on 120-277VAC input voltage and supports 0-10V dimming for flexible lighting control.

Is this light waterproof?

Yes, it is IP66 rated, making it suitable for wet locations and resistant to dust, water, and harsh weather conditions.

Can this replace HID or metal halide fixtures?

Yes, it is designed to replace traditional HID lighting while reducing energy consumption by up to 70 percent.

What environments is this light suitable for?

It is ideal for hazardous locations such as oil refineries, chemical plants, gas stations, warehouses, and marine environments.

Does this light flicker or produce noise?

No, it features instant start with no flickering or humming, ensuring stable and comfortable lighting.

What is the lifespan of this light?

The fixture is designed to last over 50,000 hours, minimizing maintenance and replacement costs.

What certifications does this light have?

It is UL844 certified, DLC Premium listed, and compliant with multiple UL and CSA standards for hazardous locations.
