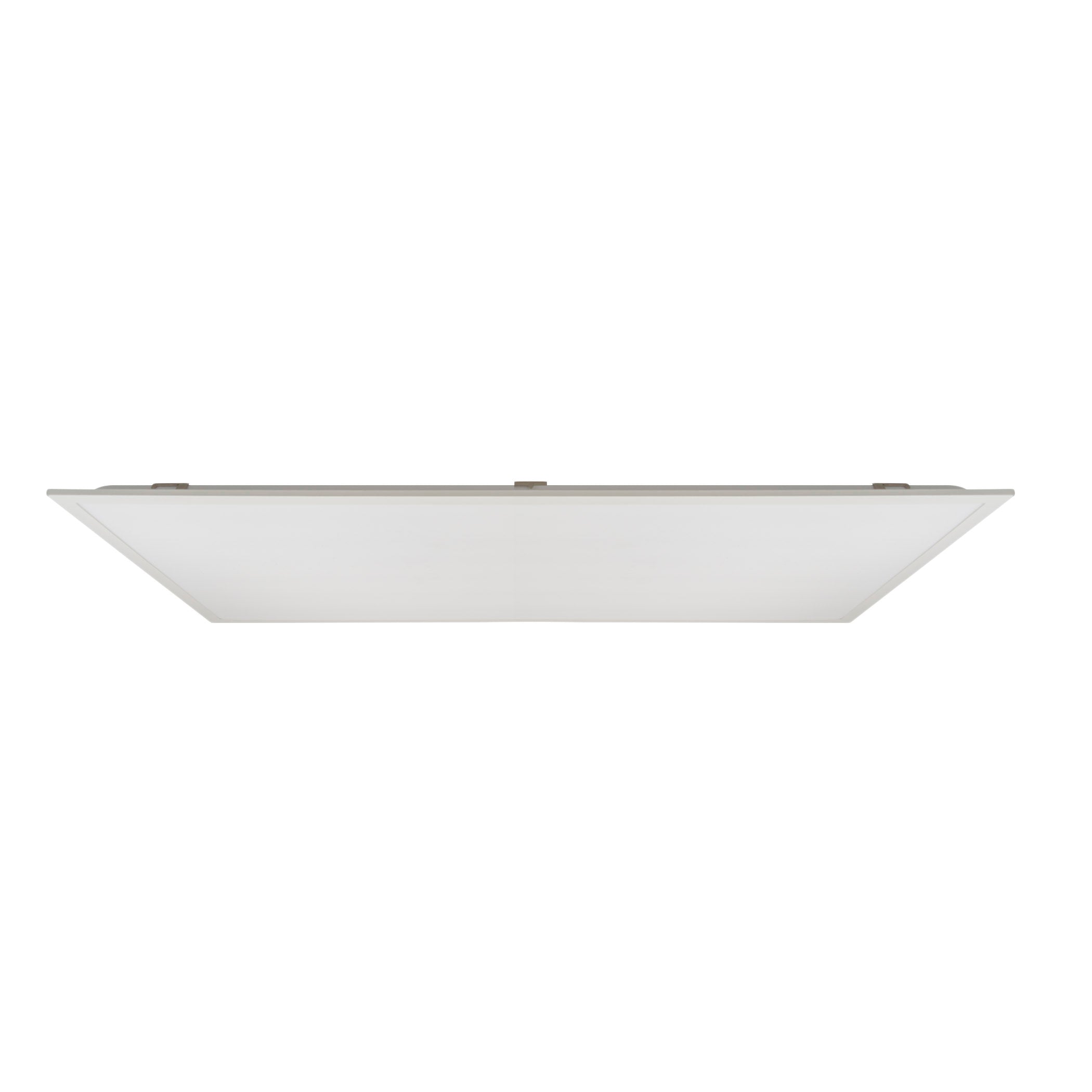

2x4 LED Panel Light – Commercial Drop Ceiling Lighting Solution
Each box includes 2 high-performance LED panel lights (priced per unit) designed for commercial environments such as offices, schools, healthcare facilities, warehouses, and retail spaces.
This 2x4 LED Panel Light is built as a complete commercial lighting solution, combining flexibility, efficiency, and long-term reliability. With both wattage and color temperature selectable, one fixture replaces multiple SKUs, making it ideal for contractors, facility managers, and bulk installations.
Premium Features
- 5 Wattage selectable (20W / 25W / 30W / 40W / 50W)
- 5 CCT selectable (3500K / 4000K / 5000K / 5700K / 6500K)
- Up to 134 lm/W high efficiency
- UL Listed and DLC 5.1 Premium (rebate eligible)
- 0–10V dimmable driver
- UGR < 22 low glare design
- 50,000+ hours lifespan
- Designed for commercial applications (office, warehouse, retail, healthcare)
One Panel Replaces Multiple Fixtures
- Adjust wattage based on ceiling height and brightness needs
- Select color temperature based on environment
- Reduce inventory and installation complexity
- Ideal for contractors and bulk projects
High Efficiency and Uniform Lighting
- Backlit design without LGP eliminates yellowing risk
- PMMA lens ensures smooth and uniform light distribution
- Up to 6700 lumens output
- Wide 110° beam angle for consistent coverage
- Flicker-free and noise-free operation
Dimmable and Easy Installation
- 0–10V dimming capability (10% to 100%)
- Slim profile (approximately 1.26 inch thickness)
- Lightweight for quick and easy installation
- Integrated driver and junction box design

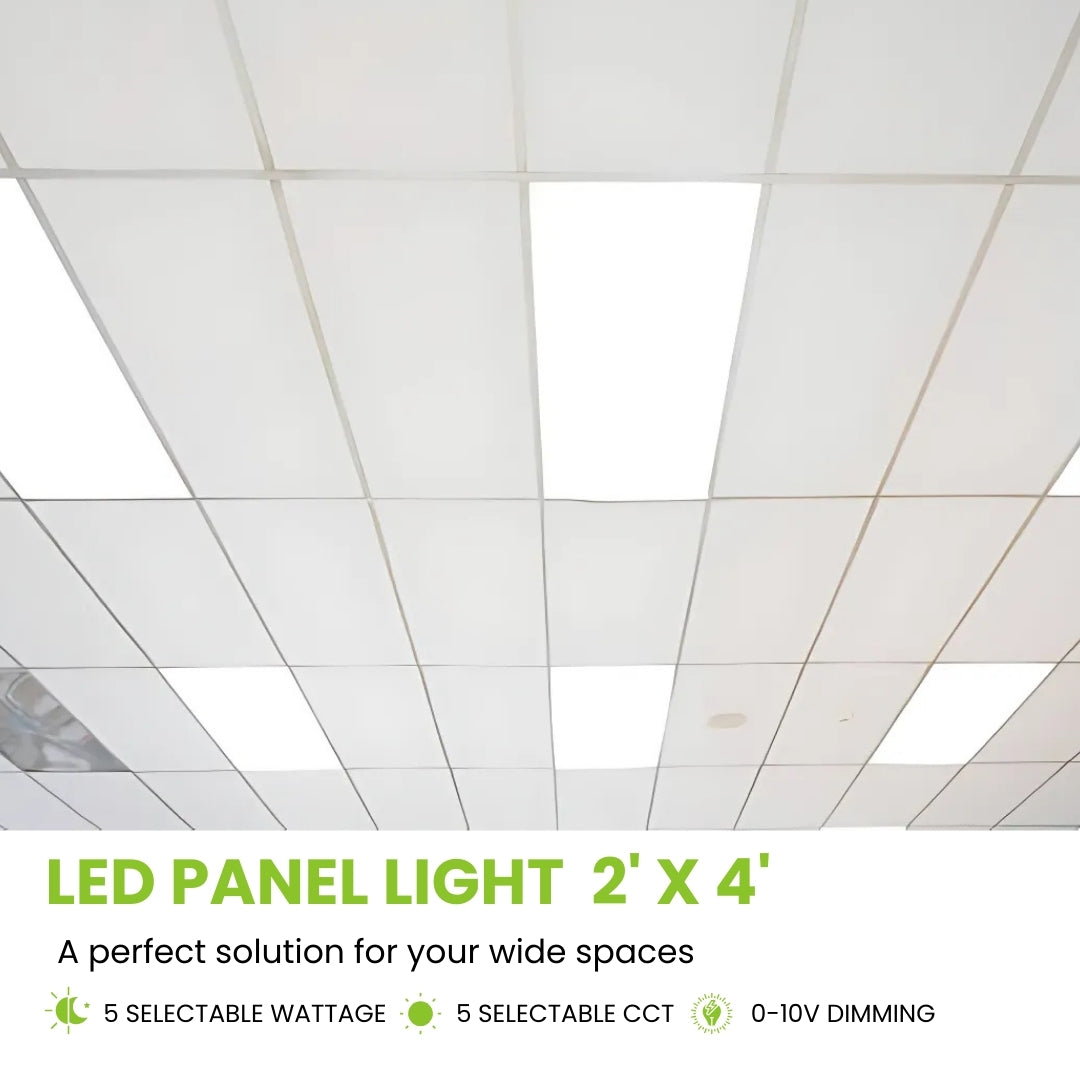

- Compatible with standard 2x4 drop ceiling grids

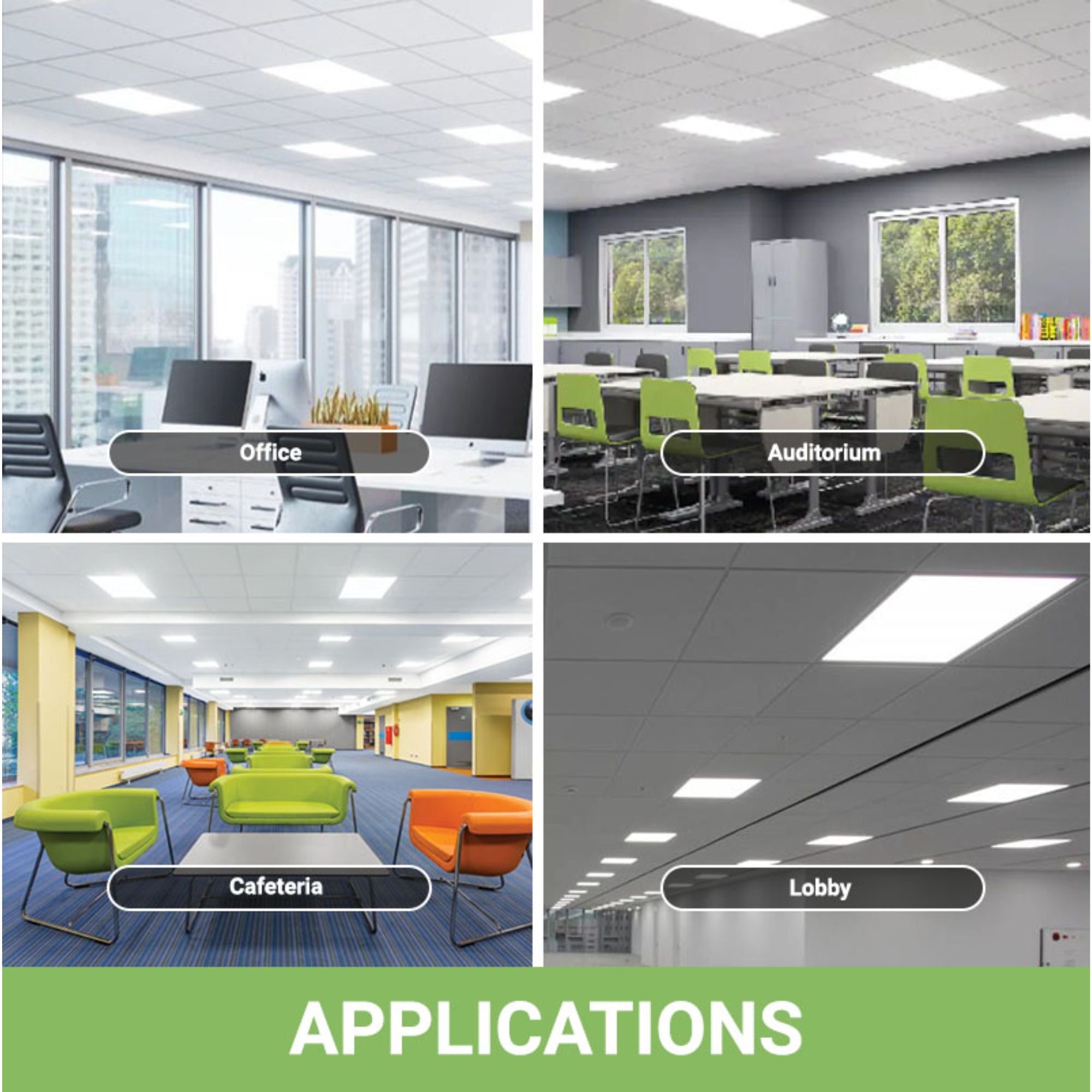

Commercial Applications
- Office ceilings and corporate spaces
- Schools and educational institutions
- Hospitals and healthcare facilities
- Retail stores and supermarkets
- Warehouses and workshops
- Conference rooms and commercial buildings
Energy Saving and Long Lifespan
- Replaces traditional fluorescent troffers
- Up to 70% energy savings
- 50,000+ hours operating life
- Reduced maintenance and replacement costs
Certifications and Compliance
- UL Listed for safety and reliability
- DLC 5.1 Premium listed (rebate eligible)
- Meets DLC 6 requirements
- High CRI with consistent color performance
Optional Features (Available on Request)
- Motion sensor (microwave sensor)
- Emergency battery backup
- Custom housing color options
Important Note
This product is designed for commercial indoor use with drop ceiling or grid ceiling systems. It is not intended for residential decorative lighting applications.
Frequently Asked Questions
Is this a panel light or a troffer light?
This is a modern LED panel light with a slim backlit design. It is commonly used as a replacement for traditional troffer fixtures.
Can this replace fluorescent 2x4 fixtures?
Yes, it is designed to directly replace 2x4 fluorescent troffers with better efficiency and lighting quality.
What voltage does this panel support?
It operates on 120–277V, making it suitable for most commercial applications.
Is this light dimmable?
Yes, it supports 0–10V dimming for adjustable brightness control.
Can I change wattage and color temperature?
Yes, both wattage and CCT are selectable, allowing flexibility for different environments.
Is this eligible for rebates?
Yes, it is DLC 5.1 Premium listed and qualifies for many utility rebate programs.
Does the light flicker or make noise?
No, it provides flicker-free and silent operation.
Can I add a motion sensor or emergency backup?
Yes, both options are available upon request.
What ceiling type is this compatible with?
It is designed for standard 2x4 drop ceiling (grid ceiling) installations.
Is this suitable for residential use?
This product is designed for commercial applications and not intended for residential decorative use.
Specifications
| SKU | 102-100027 | ||
|---|---|---|---|
| Certifications | UL and DLC 5.1 Premium (also meets DLC 6 requirements) | ||
| IP Rating | DAMP(IP40) | ||
| Watts | 50W/40W/30W/25W/20W | ||
| Lumens | 6700 LM | ||
| Efficacy | 134 LM/W | ||
| CCT | 3500K/4000K/5000K/5700K/6500K Tunable | ||
| CRI | >80 | ||
| Input Voltage | 120-277VAC | ||

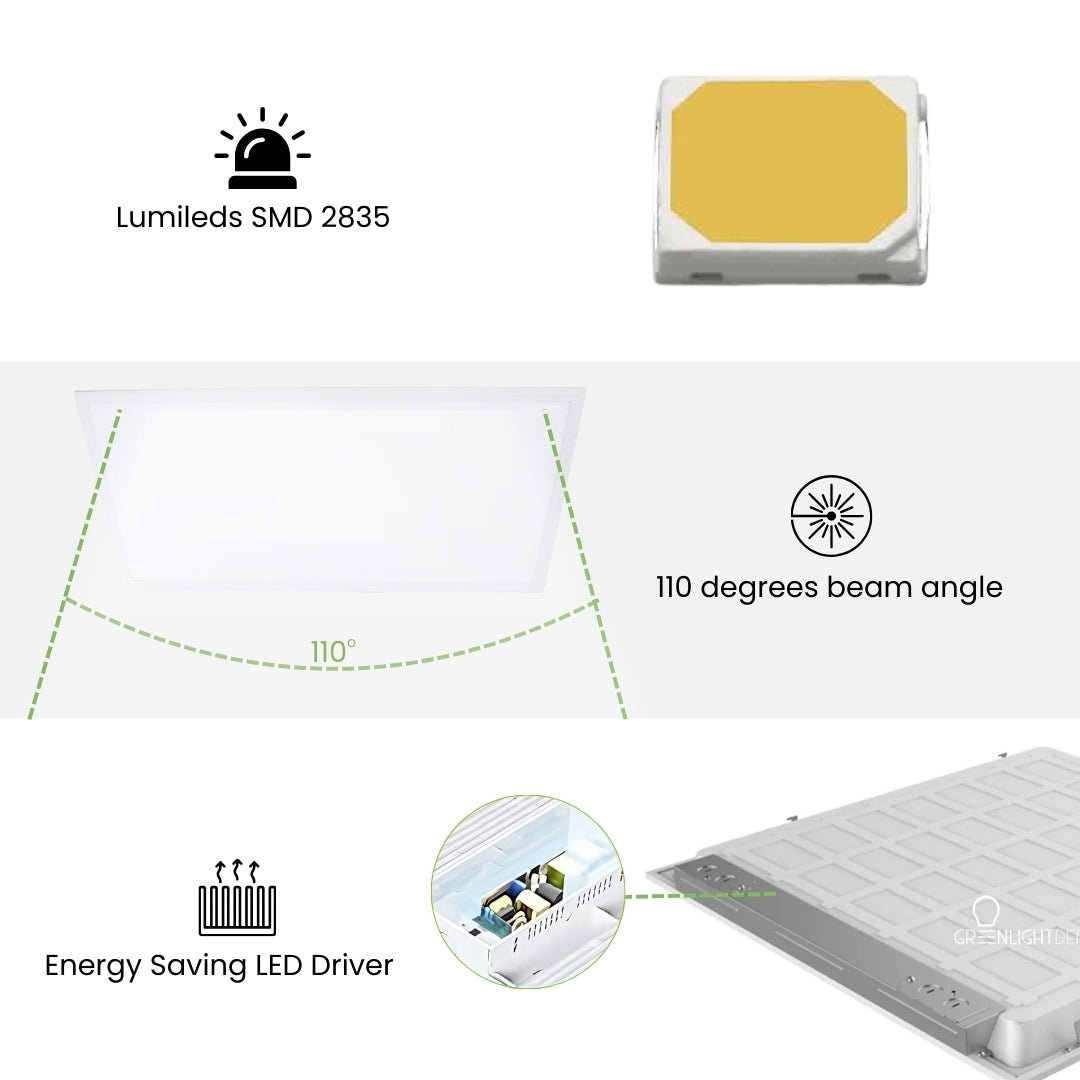

| LED Type | SMD 2835 | ||
| LED Count | 240 PCS | ||
| Lifespan | 50,000 hours | ||
| Power Factor (PF) | ≥0.9 | ||
| Item Dimensions | 23.74in × 46in × 1.26in | ||
| Weight | 10 LBS each | ||
| Warranty | 5 years | ||
| Dimming | 0-10V | ||
