Description

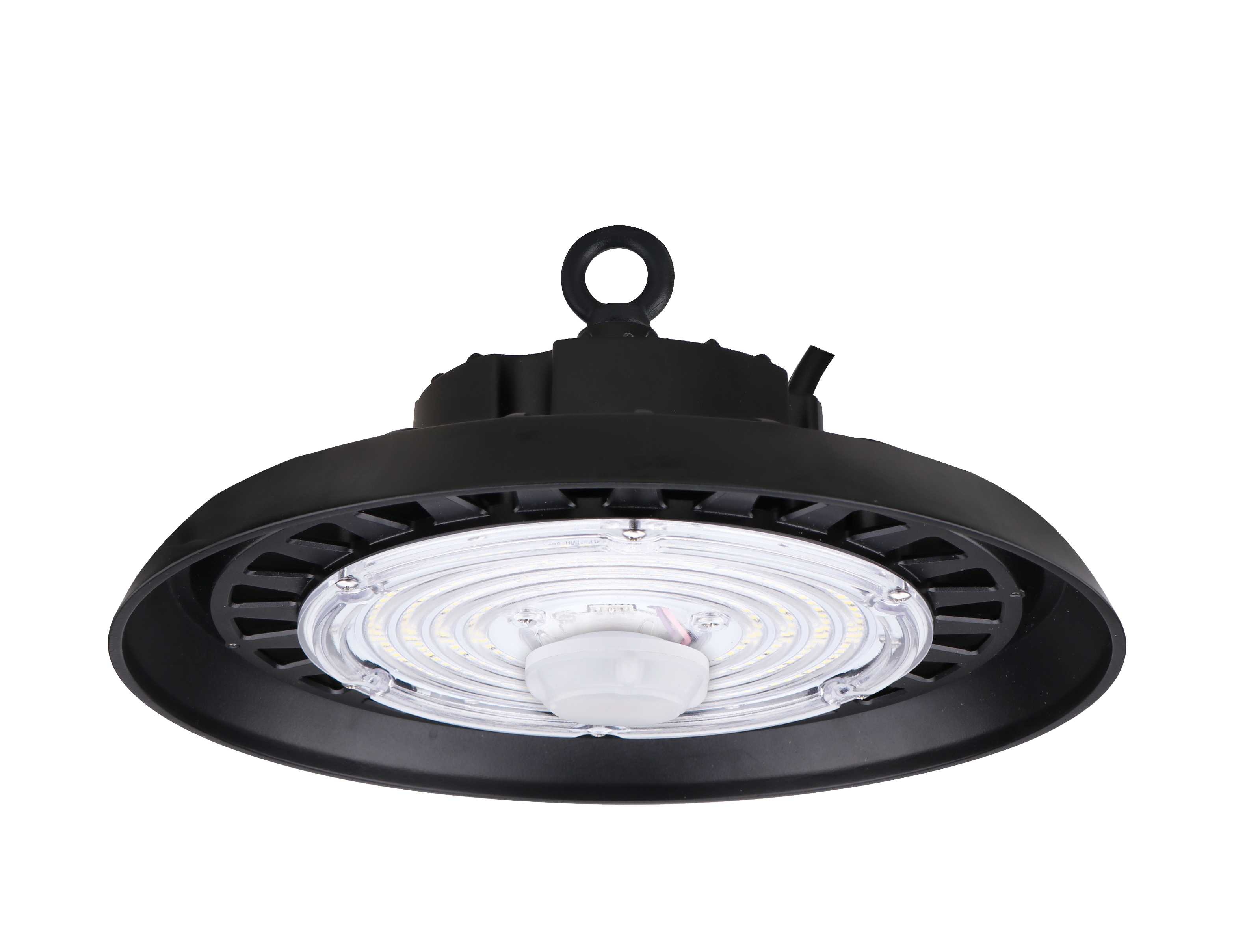

LED UFO High Bay Light with Motion Sensor
The UHBM LED UFO High Bay Light is designed for commercial and industrial applications where high-performance lighting, energy efficiency, and long-term reliability are essential. Available in 100W, 150W, and 200W models, this series delivers up to 32,600 lumens while reducing energy consumption compared to traditional HID high bay fixtures.
Each fixture includes a plug-and-play motion sensor, durable hook mount, universal 120-277V input, and 0-10V dimming. Certified by UL and DLC Premium 5.1 (also meeting DLC 6 requirements), these fixtures are ideal for warehouses, factories, workshops, gyms, retail spaces, and other high-ceiling commercial environments.
Key Features
- Available in 100W, 150W, and 200W models
- High efficiency up to 163 lumens per watt

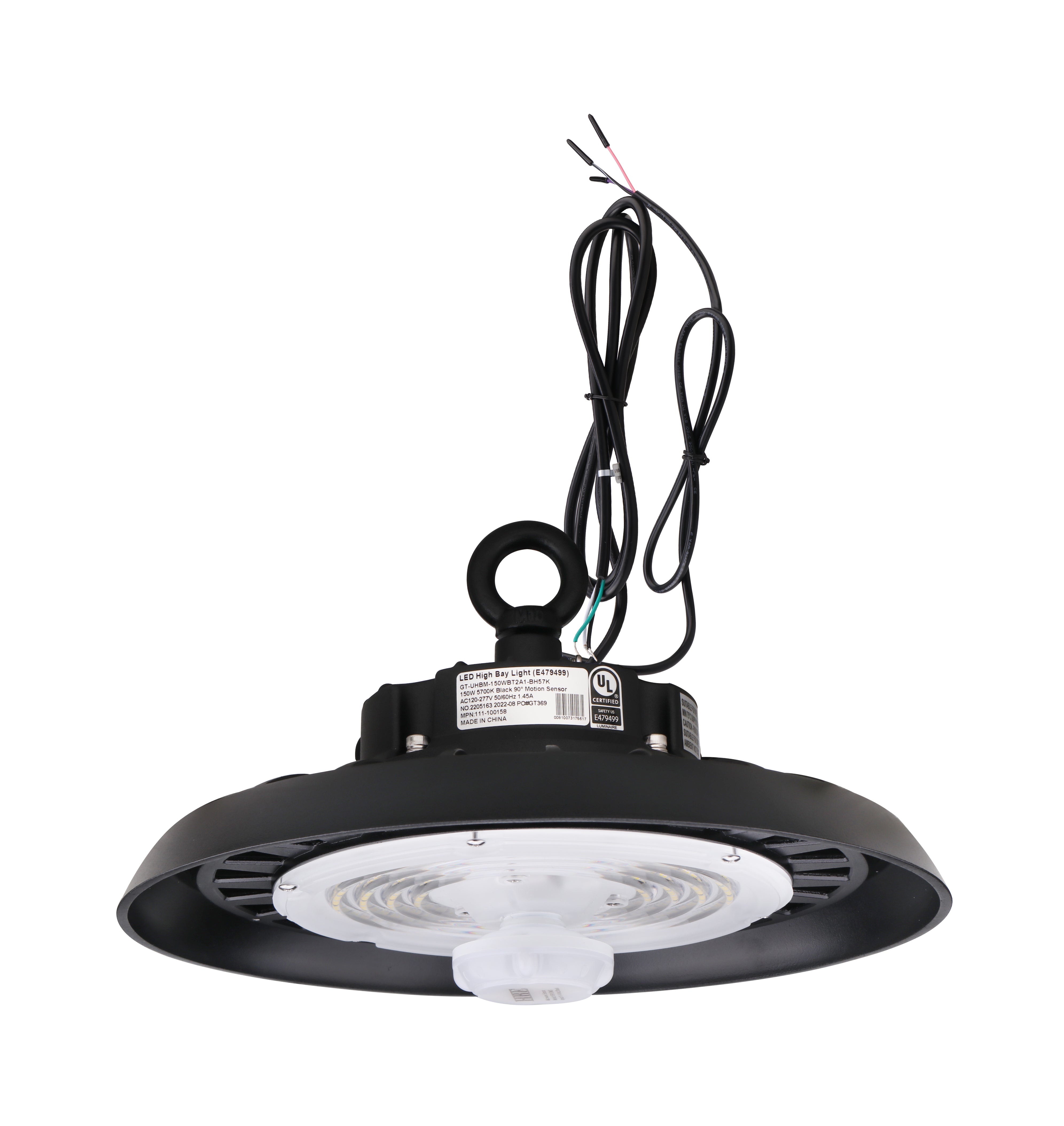

- Plug-and-play microwave motion sensor included

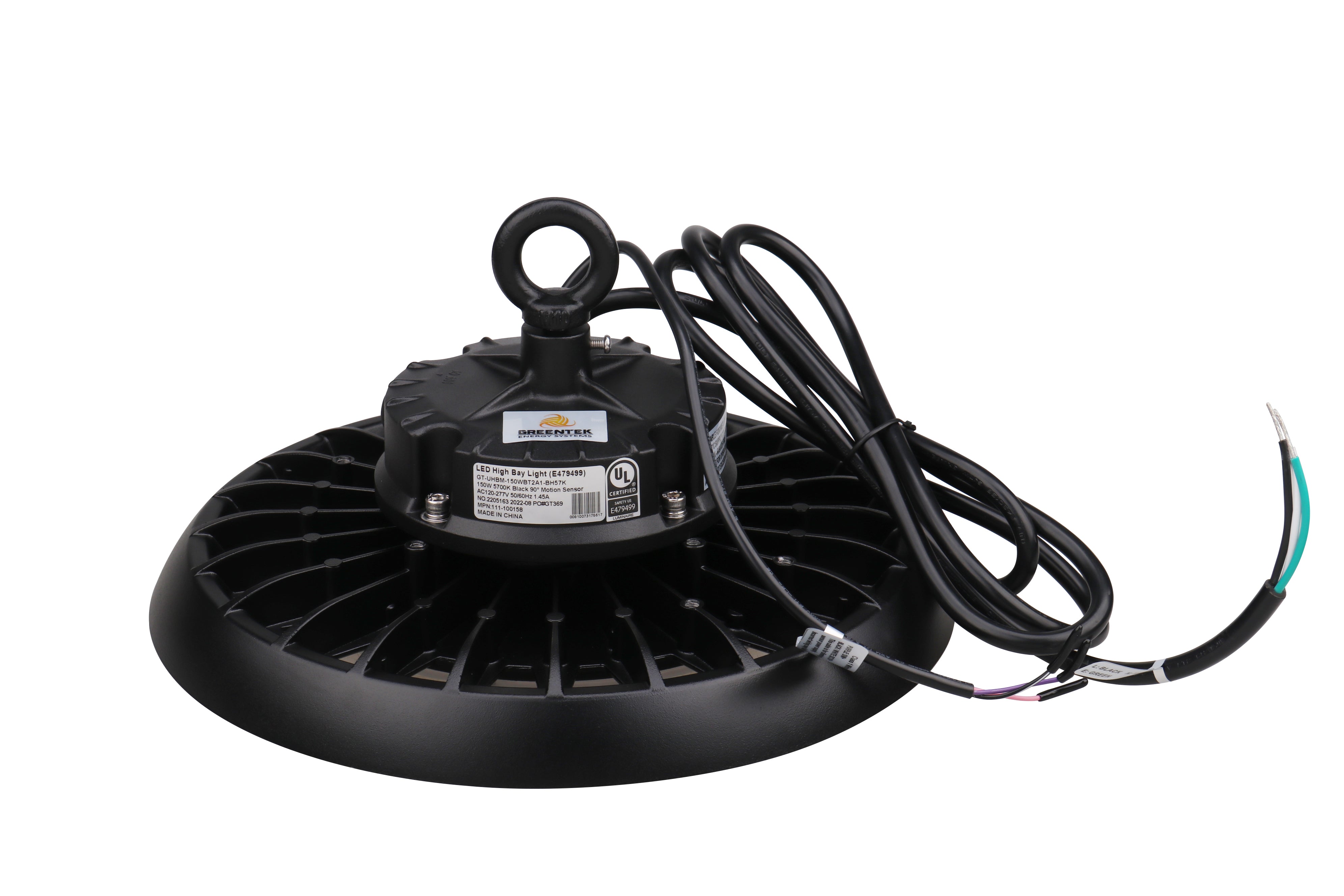

- Heavy-duty hook mount included
- 120-277V universal input voltage
- 0-10V dimmable
- IP65 rated aluminum housing
- Instant-on operation with no flickering or humming
- Mercury-free, energy-efficient LED technology
- UL Listed and DLC Premium 5.1 Certified
- Also meets DLC 6 requirements
- 5-Year Manufacturer Warranty

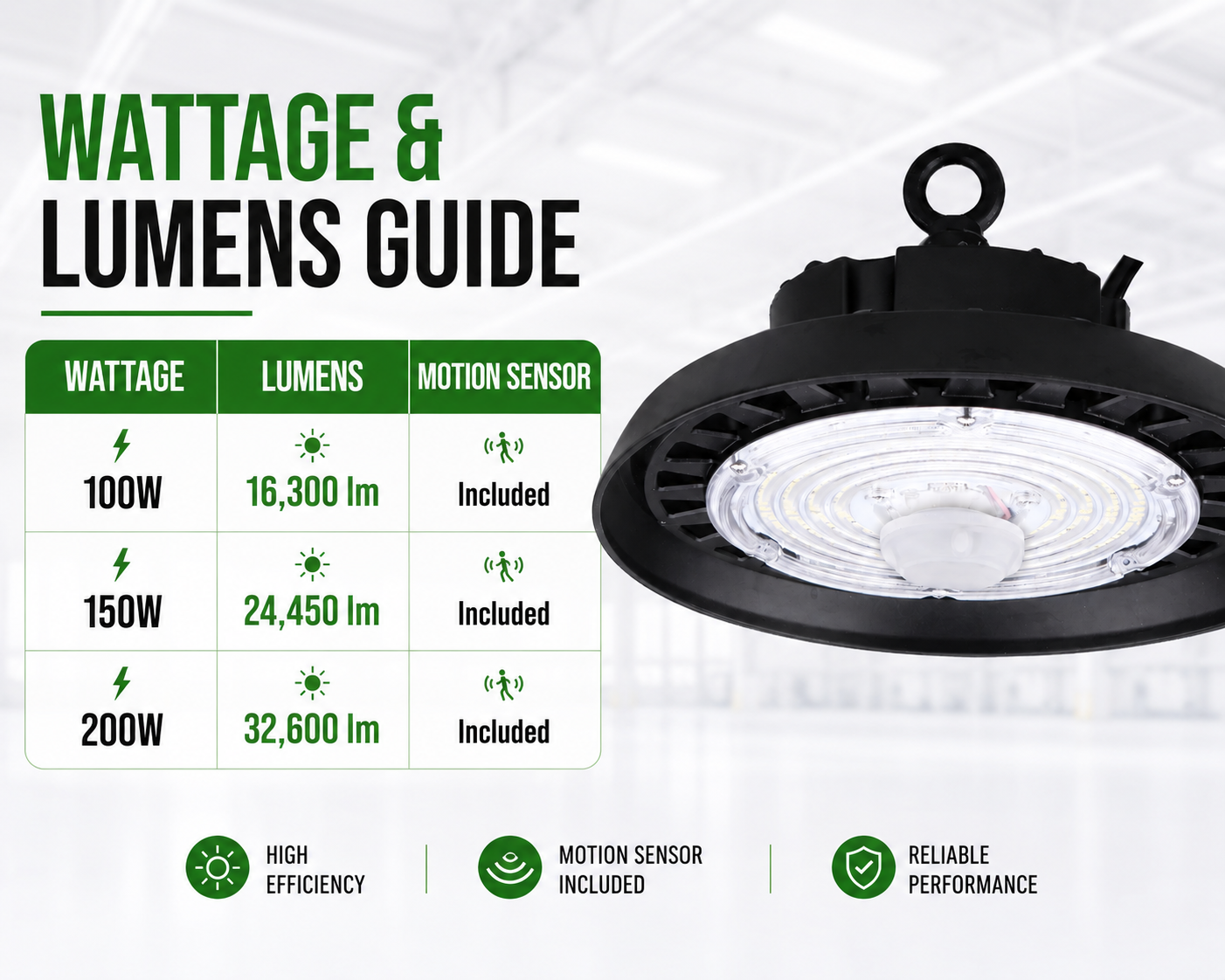

Model Comparison
Compare the key differences between the available wattage options to select the LED UFO High Bay Light that best fits your application.
| Specification | 100W | 150W | 200W |
|---|---|---|---|
| Input Power | 100W | 150W | 200W |

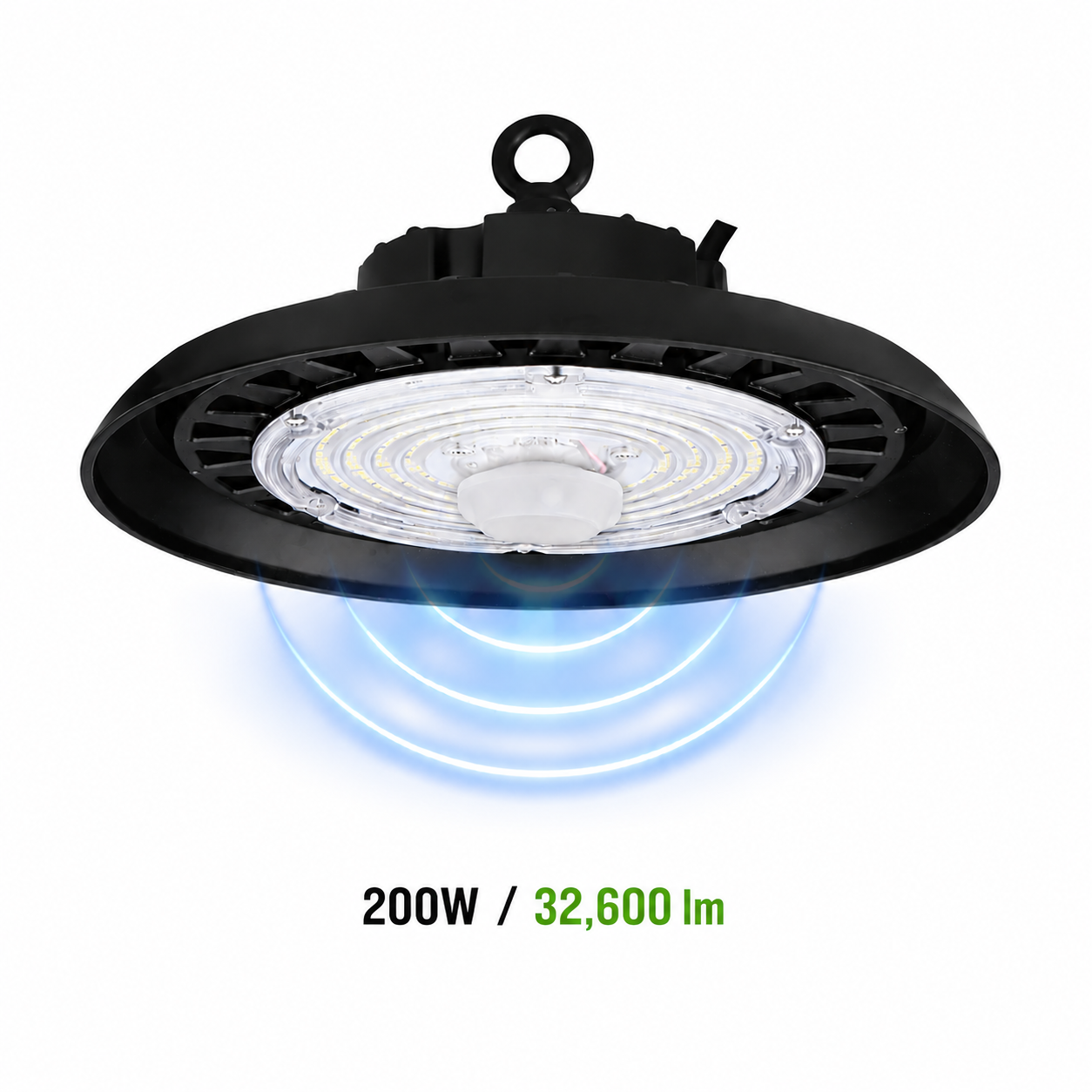

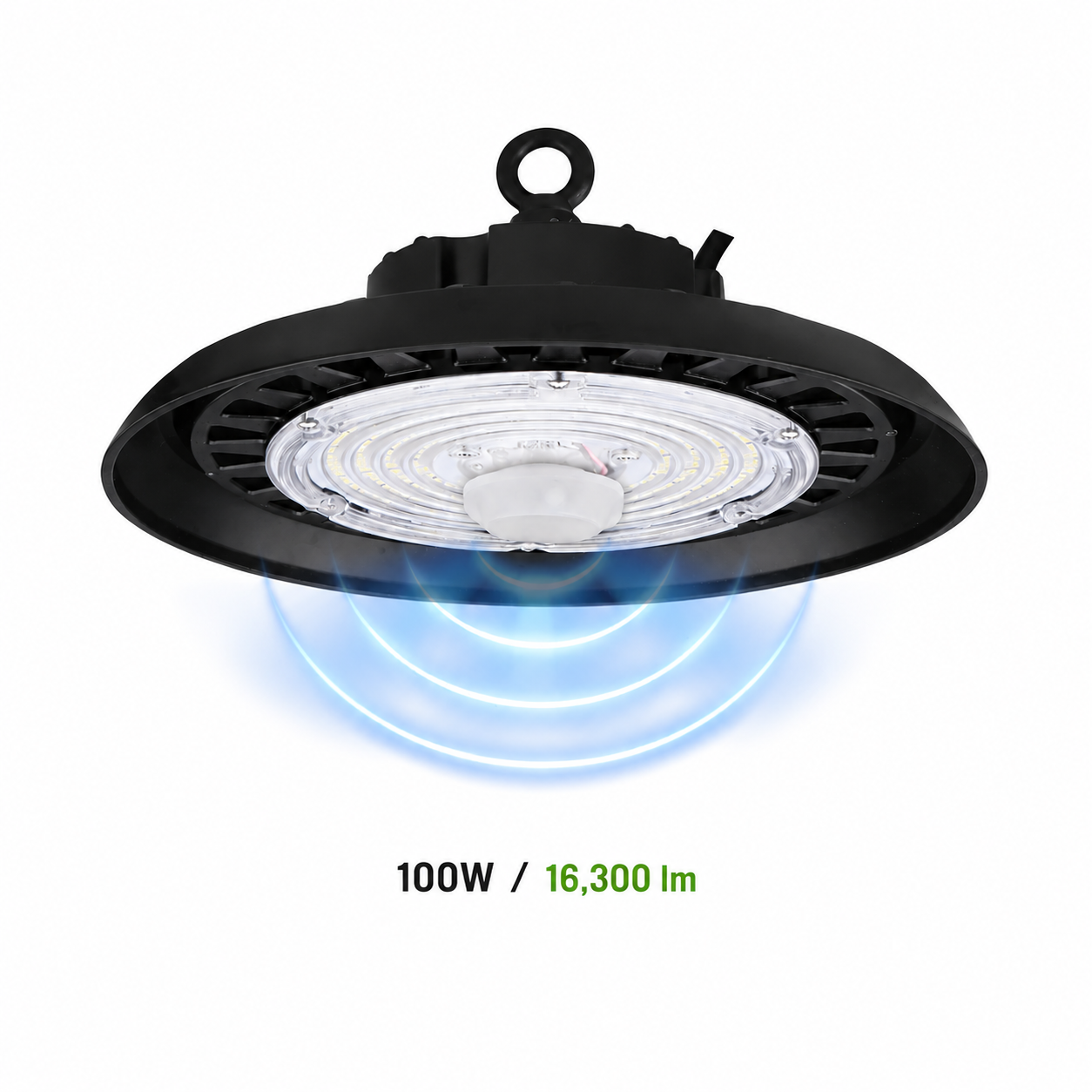

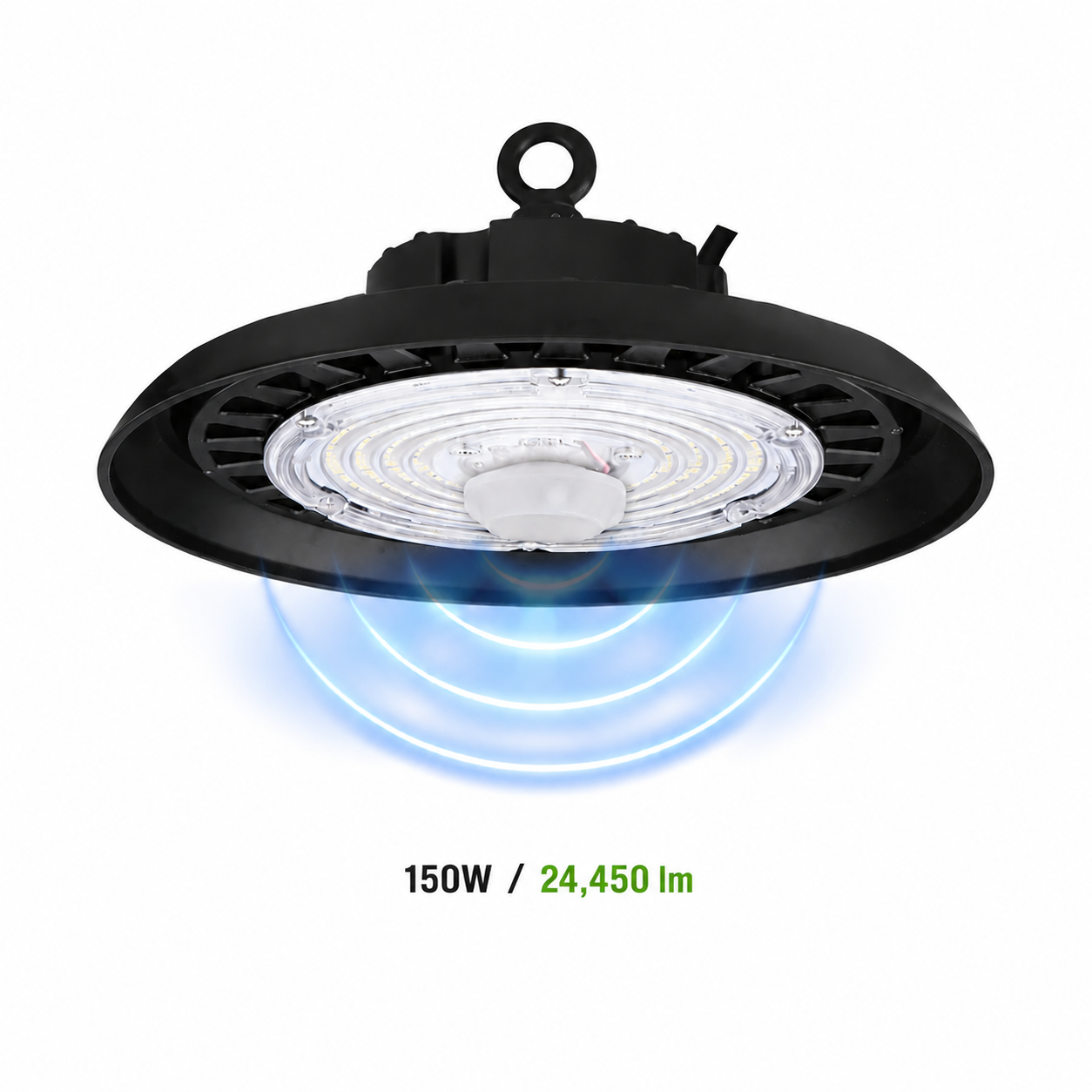

| Lumen Output | 16,300 lm | 24,450 lm | 32,600 lm |
| LED Count | 240 LEDs | 340 LEDs | 450 LEDs |
| Driver Model | LF-FHB100YAⅣ | LF-FHB150YAⅣ | HB-200RE-130BH |

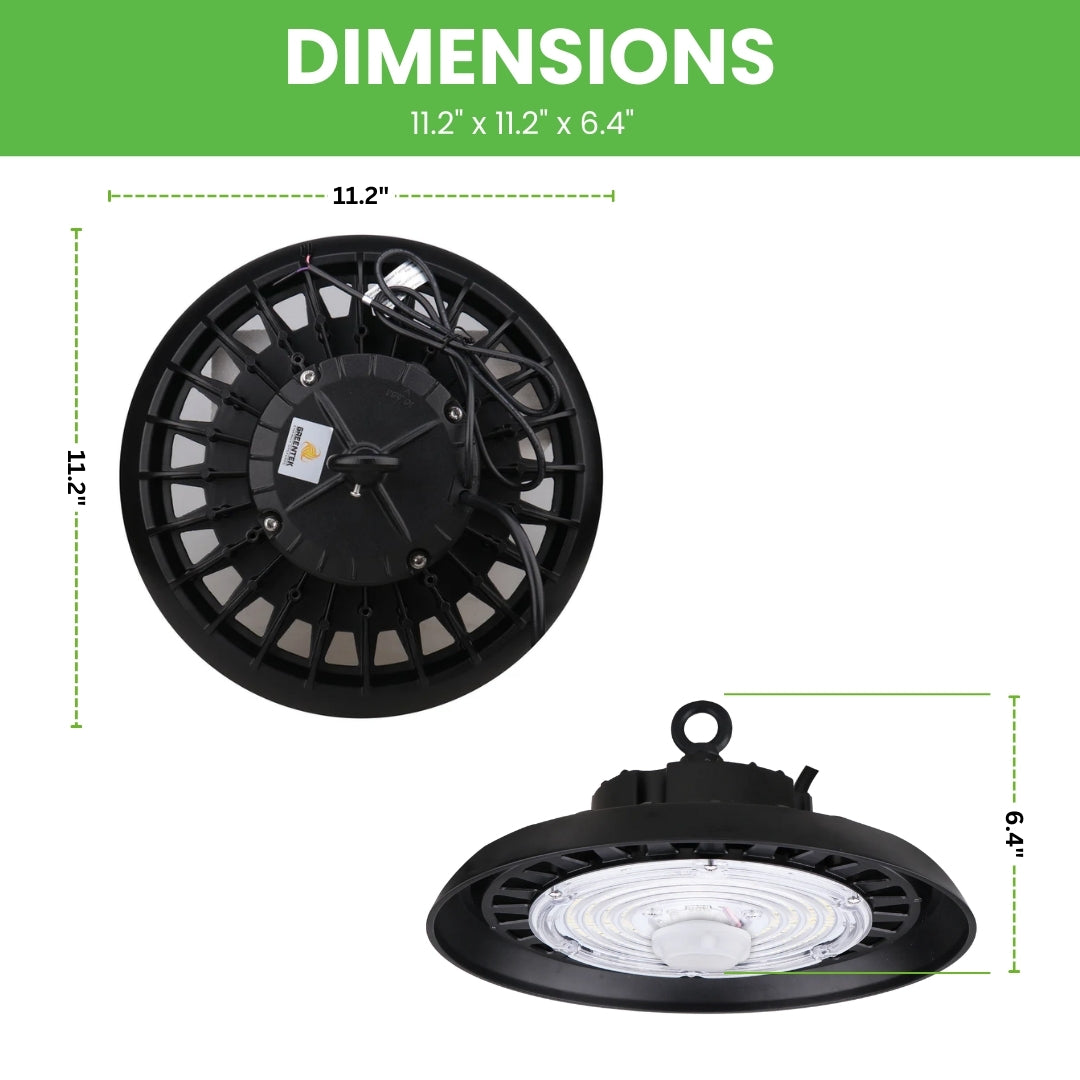

| Fixture Diameter | Ø285 mm | Ø285 mm | Ø325 mm |
| Fixture Height (Pendant) | 144.5 mm | 144.5 mm | 147.5 mm |
| Fixture Height (Surface Mount) | 164.5 mm | 164.5 mm | 186.5 mm |
| Pendant Package Size | 300 × 300 × 130 mm | 300 × 300 × 130 mm | 340 × 340 × 130 mm |
| Pendant Net Weight | 1.8 kg | 1.8 kg | 2.2 kg |
| Pendant Gross Weight | 2.5 kg | 2.5 kg | 2.9 kg |
| Surface Mount Net Weight | 2.4 kg | 2.4 kg | 2.7 kg |
| Surface Mount Gross Weight | 3.1 kg | 3.1 kg | 3.6 kg |
Select the Right Model
Choose the wattage that best matches your ceiling height, application, and lighting requirements. All UHBM LED UFO High Bay Lights include a motion sensor, hook mount, UL Listed and DLC Premium certification, IP65 protection, 120-277V input, and a 5-year warranty.
100WBest For
Light Output Color Temperature |
150WBest For
Light Output Color Temperature |
200WBest For
Light Output Color Temperature |
Need help choosing? Compare the technical specifications below to find the model that best fits your commercial lighting project.

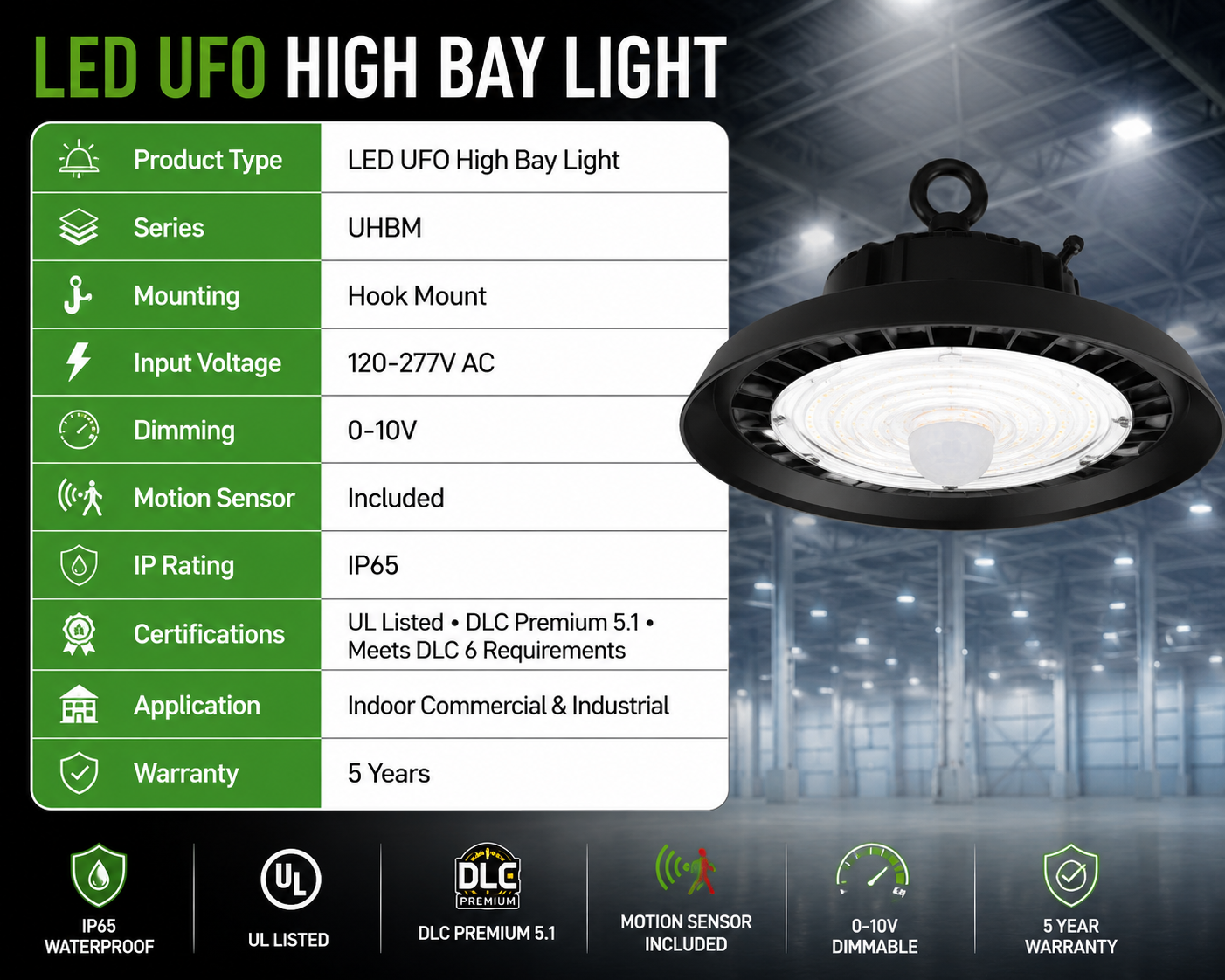

Technical Specifications
| Product Type | LED UFO High Bay Light |
| Series | UHBM |
| Mounting | Hook Mount |
| Input Voltage | 120-277V AC |
| Dimming | 0-10V |
| Motion Sensor | Included |
| IP Rating | IP65 |
| Certifications | UL Listed • DLC Premium 5.1 • Meets DLC 6 Requirements |
| Application | Indoor Commercial & Industrial |
| Warranty | 5 Years |
Motion Sensor Default Settings
| Brightness | 100% |
| Hold Time | 1 Minute |
| Standby Dimming Level | 20% |
| Standby Time | 1 Minute |
| Sensitivity | 100% |
| Daylight Sensor | Disabled |
Recommended Applications
- Warehouses
- Manufacturing Facilities
- Distribution Centers
- Storage Facilities
- Workshops
- Retail Stores
- Gymnasiums
- Automotive Service Centers
- Commercial Buildings
What's Included
- LED UFO High Bay Fixture
- Motion Sensor
- Hook Mount
- Installation Hardware
Product Documents
| Document | 100W | 150W | 200W |
|---|---|---|---|
| Specification Sheet | View PDF | View PDF | View PDF |
| Motion Sensor Specification | View Motion Sensor Specification | ||
Why Choose Green Light Depot?
- Commercial-grade LED lighting solutions
- High-performance products with premium certifications
- Utility rebate eligible (DLC Premium)
- Fast shipping from the USA
- Expert customer support
- 5-Year Manufacturer Warranty
Frequently Asked Questions
Does this LED UFO High Bay Light include a motion sensor?
Yes. Every UHBM LED UFO High Bay Light includes a plug-and-play motion sensor in the box for quick and easy installation.
What wattage options are available?
This series is available in 100W, 150W, and 200W models. Choose the appropriate wattage based on your ceiling height and lighting requirements.
What is the input voltage?
All models operate on a universal 120-277V AC input, making them suitable for most commercial and industrial electrical systems.
Is this high bay light dimmable?
Yes. All UHBM models support 0-10V dimming when connected to a compatible LED dimming control.
Can this fixture be used in damp or dusty environments?
Yes. The fixture is IP65 rated, providing protection against dust and water ingress. It is ideal for demanding commercial and industrial indoor environments.
Is the hook mount included?
Yes. Every fixture includes a hook mount for fast and secure installation.
Does the fixture qualify for utility rebates?
Yes. The UHBM series is UL Listed and DLC Premium 5.1 Certified while also meeting DLC 6 requirements, making it eligible for many commercial utility rebate programs.
What is the expected lifespan?
The LED fixture is designed for long-lasting commercial performance with minimal maintenance, helping reduce replacement and operating costs.
What is included in the package?
Each package includes the LED UFO High Bay fixture, motion sensor, hook mount, and installation hardware.
What warranty is included?
All UHBM LED UFO High Bay Lights are backed by a 5-Year Manufacturer Warranty.
Related Searches
Customers searching for this product also look for the following commercial LED lighting solutions:
- LED UFO High Bay Light
- Motion Sensor LED High Bay
- Commercial LED High Bay Lighting
- Industrial LED High Bay Fixture
- Warehouse LED High Bay Lights
- 100W LED UFO High Bay
- 150W LED UFO High Bay
- 200W LED UFO High Bay
- High Ceiling LED Lighting
- Hook Mount LED High Bay
- UL Listed High Bay Light
- DLC Premium LED High Bay
- 120-277V LED High Bay
- IP65 LED High Bay Light
- Commercial Warehouse Lighting
Looking for a different wattage or color temperature? Browse our complete selection of LED UFO High Bay Lights to find the right fixture for your commercial or industrial lighting project.
Specifications
| SKU | 111-100155 (4000K), 111-100156 (5700K) | ||
|---|---|---|---|
| Certifications | UL, DLC 5.1 Premium | ||
| IP Rating | IP65 Rated | ||
| Watts | 100W / 150W / 200W | ||
| Lumens | 16000 lm - 32,600 lm | ||
| Efficacy | 160-163LM/W | ||
| CCT | 4000K, 5700K | ||
| Sensor | Motion Sensor | ||
| Mount type | Hook Mount | ||
| CRI | >80 | ||
| Replaces up to | 120-277VAC | ||
| Input Voltage | 120-277VAC | ||
| Material | Die-cast aluminum | ||

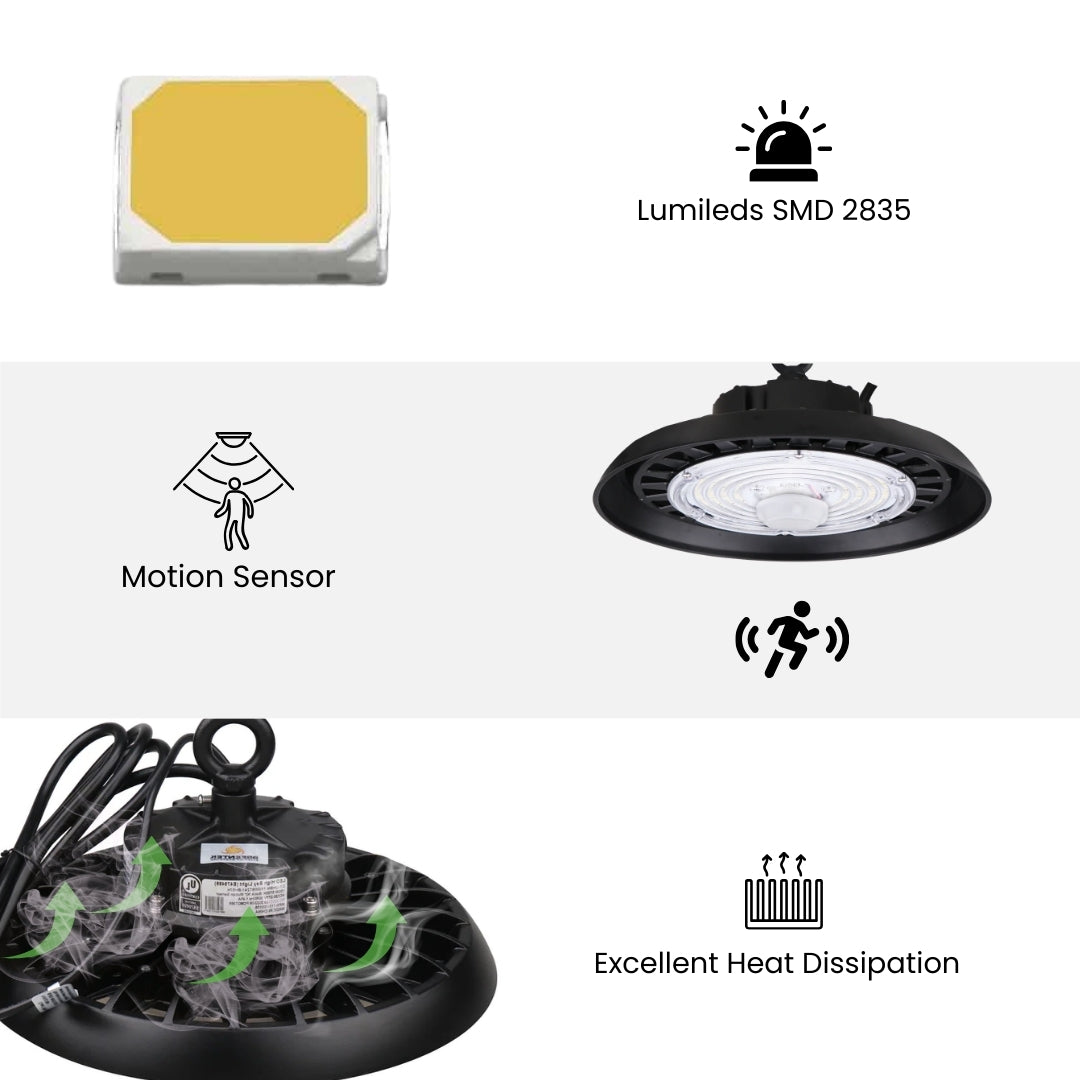

| LED Type | SMD2835 | ||
| LED Count | 240 -340 - 450 | ||
| Fixture Color | Black | ||
| Lifespan | 50,000 hrs | ||
| Power Factor (PF) | ≥0.9 | ||
| Box Dimensions | 13" x 13" x 5.1" | ||
| Weight | 5.5 lb | ||
| Warranty | 5 Years | ||
| Dimming | 0-10v | ||
| Viewing angle | 90° | ||
