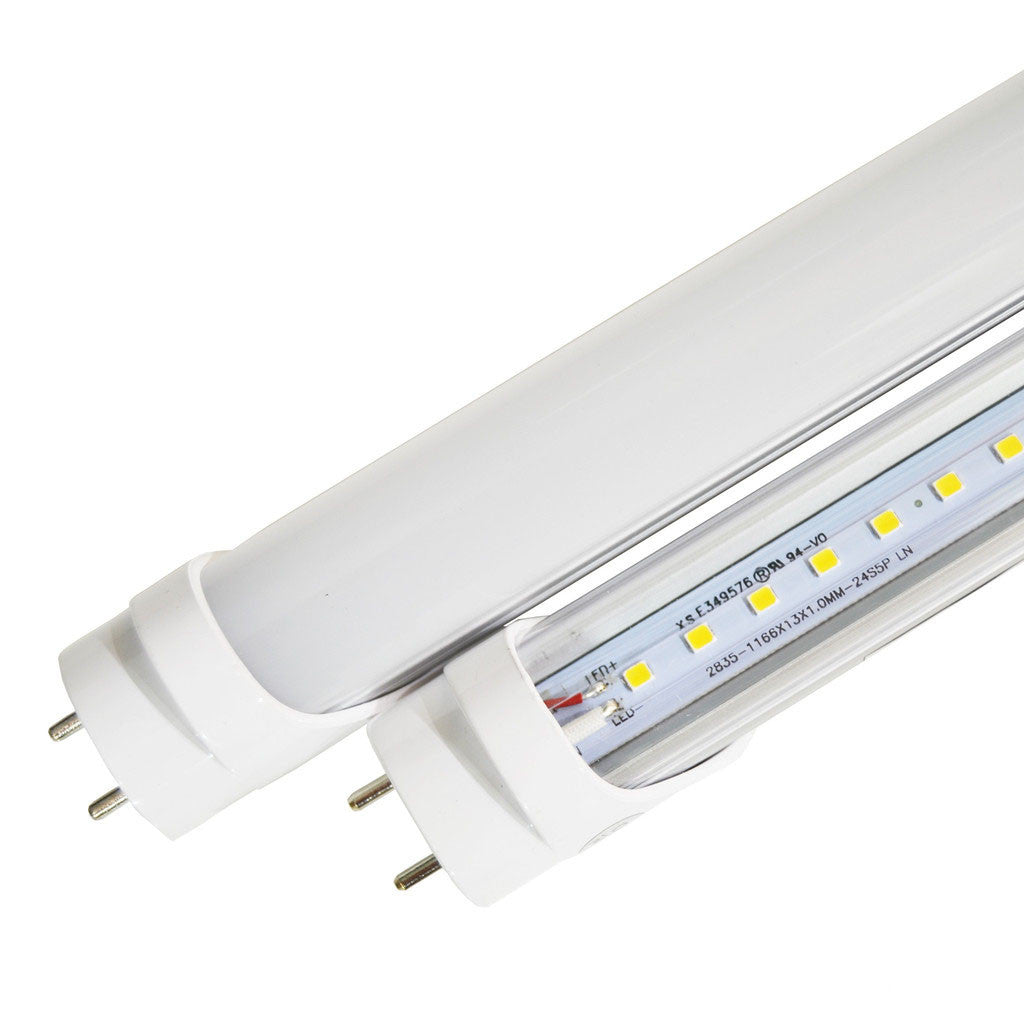

The SafeT8 is our premier LED tube and works with most T8 electronic ballasts and can be bypassed (Versa Mode). The advantage to this tube is its versatility. Not only can this tube work with a ballast, it can also work without a ballast, directly wired into AC100-277V. The power consumption of these LED lights range from 12-20W. These eco-friendly light tubes have a lifespan up to 50,000 hours or more and can save you up to 60% in power consumption. They are ETL Listed and come with a 3 year warranty!
Our led tubes bypass retrofit T8/T12 32w and 40w fluorescent tubes.
Our led tubes plug and play feature work with most T8 rapid start and instant start ballasts.
Preparing For Installation
1. Check the ballast installed in the field and make sure the ballast is in manufacturer’s ballast list which can be found below. If the ballast out of the manufacturer’s ballast list, a test may be needed before any mass installation.
2. Loose and damaged lamp holder and socket need to be adjusted or be replaced.
*For Plug N' Play installation, check the ballast compatibility list to ensure optimal and safest utilization of the tube light. Click here for ballast compatibility list.

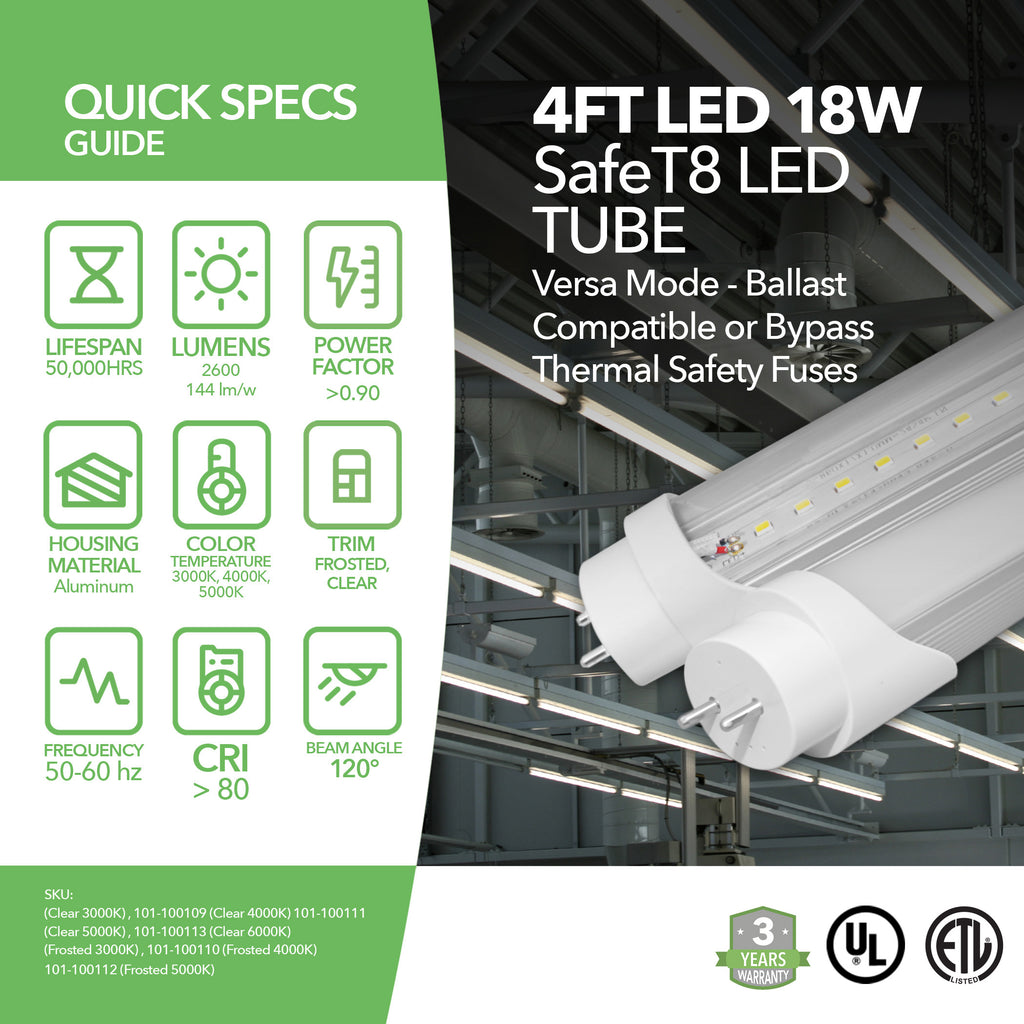

Specifications
SKU: (Clear 3000K) , 101-100109 (Clear 4000K)
101-100111 (Clear 5000K) , 101-100113 (Clear 6000K)
(Frosted 3000K) , 101-100110 (Frosted 4000K)
101-100112 (Frosted 5000K) ,
Qualification: ETL Listed
Power: 18W
Color: 3000K, 4000K, 5000K
CRI: > 80
Input Voltage: 100-347VAC with ballast, 120-277VAC without ballast
Frequency: 50-60 Hz
Lifespan: 50,000 hours
Lumens: 2600 144 lm/w
Led Type: SMD 2835

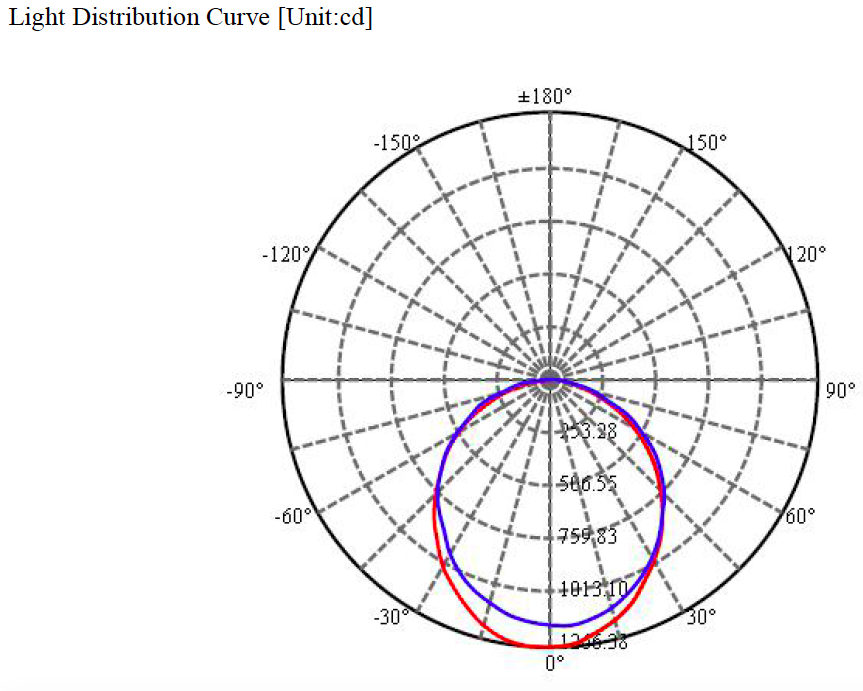

Beam Angle (°): 120°
Warranty: 3 years
Quantity: 30 per box
Wiring: Single End, Dual End, Ballast Compatible
Driver: Internal
Power factor: More than 0.90
Housing: Aluminum
Waterproof: IP20
Thermal Fuses: Included

Product Spec, Installation Guide, & Ballast Compatibility List
Click Here to view documentation
